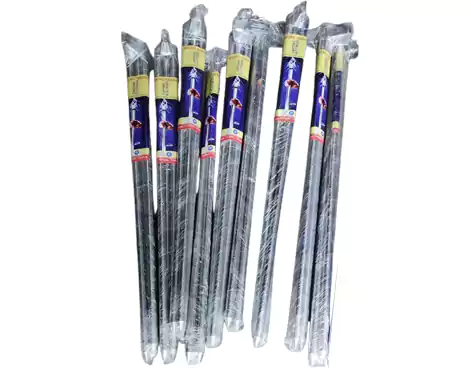

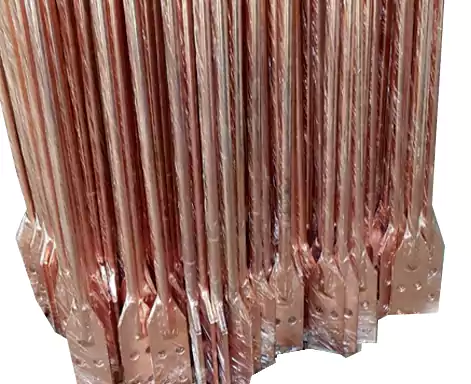

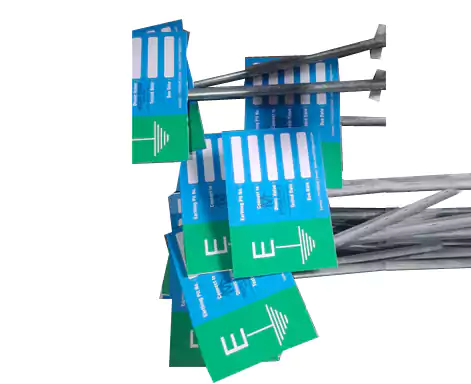

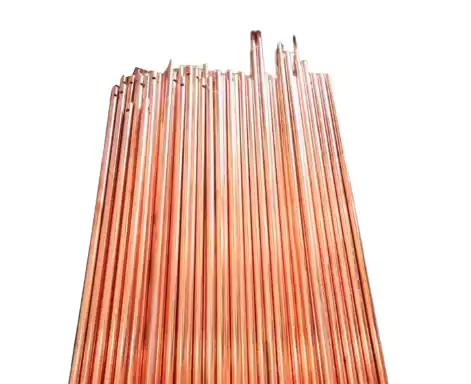

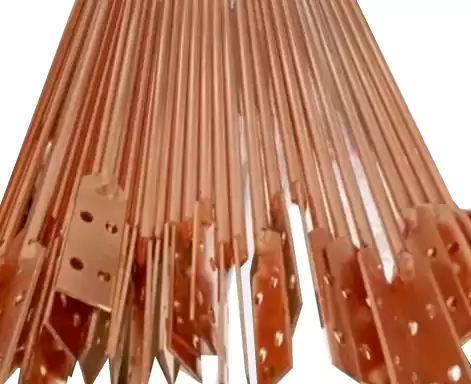

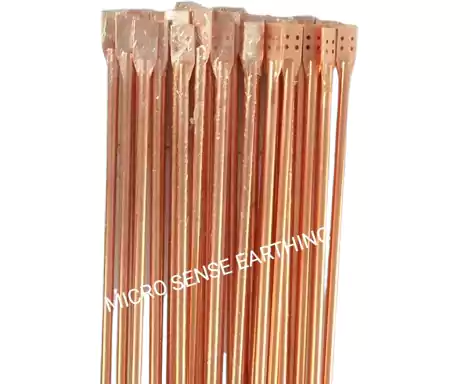

Copper Bonded Earthing Electrode

Copper Bonded Earthing Electrode

    It is made from low carbon steel with a high tensile strength of at least 600 N/mm2. The low carbon steel core is molecularly bonded with 99.9% pure electrolytic copper. This helps in dissipating the fault current and protects your assets from being damaged by the hazards of fault current.
    The copper layer is bonded to steel core through an electrolytic process that ensures a perfect and tough bonding between the steel and the copper the earthing rods are fully covered with copper without any cracks, holes, cavities etc. and prevent exposure of the steel core to soil and moisture. Therefore it can resist corrosion better 1 and has capacity of being driven to great depths.


Model Length Mtr. Terminal Size Outer Pipe Diameter mm
50 MSCB 1, 2 & 3 40 x 6 48
80 MSCB 1, 2 & 3 50 x 6 76
